Wenyao 12 chutes color sorter
PRODUCT DETAILS
Wenyao Color Sorting Machine Function:
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Technical Parameters
MODEL | WYCS12-768 |
Channels | 768 |
Output(kg/h) Depend on raw material impurity: | 2400-18000 |
Sorting Accuracy(%): | ≥99.9 |
Carryover Rate(bad:good): | ≥10:1 |
Power Supply(KW): | 7.4 |
Work Air Pressure(Mpa): | 0.2-0.3 |
Air Consumption(L/min): | 3000-6000 |
Voltage: | 180-240V/50Hz |
Weight(kg): | 1850 |
Dimension/Size (L*W*H)mm | 2660*2860*2010 |
Package: | Wooden Case |

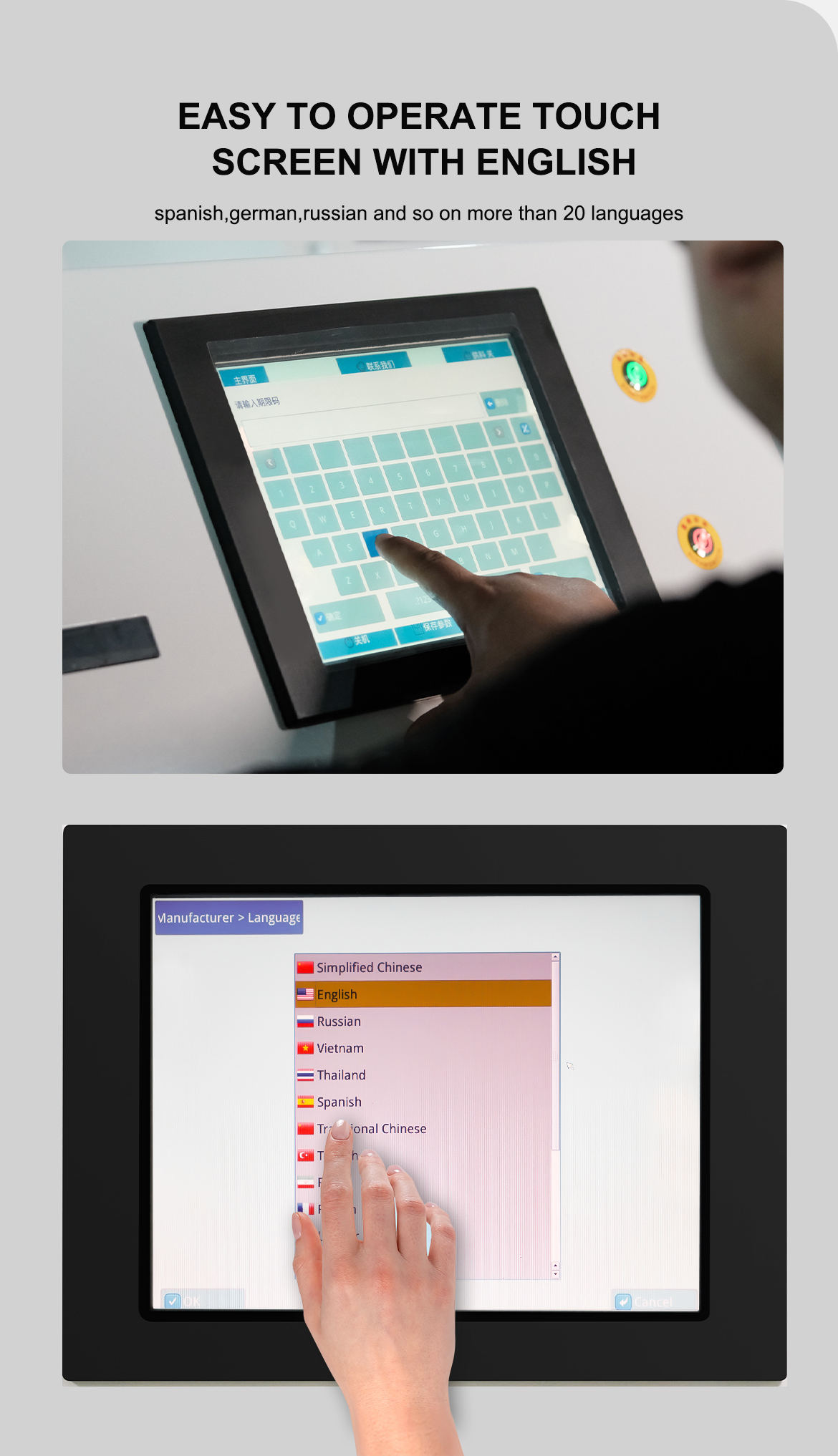

Easy to operate touch screen with Espanish,German,Russian and more than 20 languages

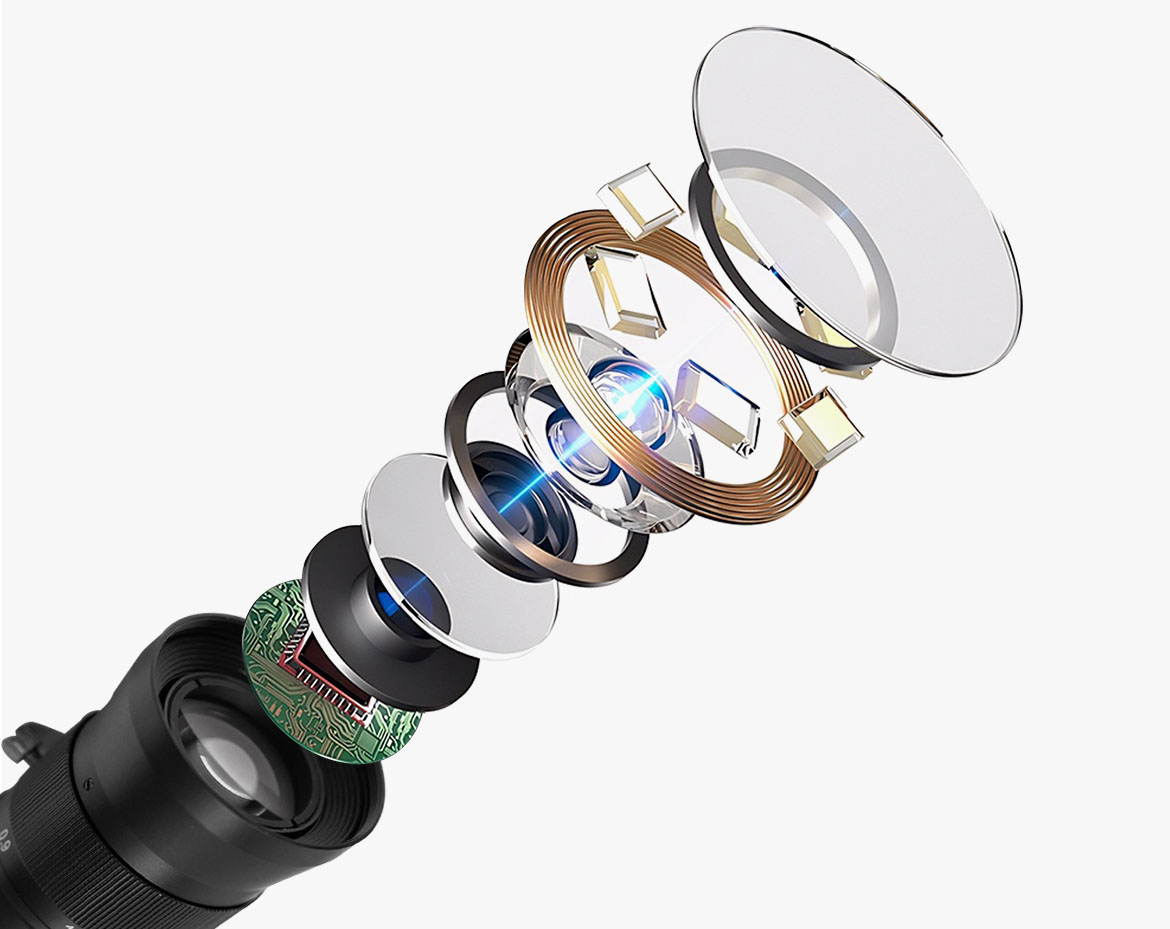

5400 pixel ccd image acquisition system with high speed chip
The semiconductor imaging device has the advantages of high sensitivity,anti-glare, small distortion,small size, long life, anti-vibration and so on.
Automatic computing and intelligent identification with high speed camera.
Self design high ejectors-
It means high speed and accurate sorting performance
Core patent, starting frequency >1200 times/sec regular maintenance.
The service life of the spray valve can match the lifetime use needs

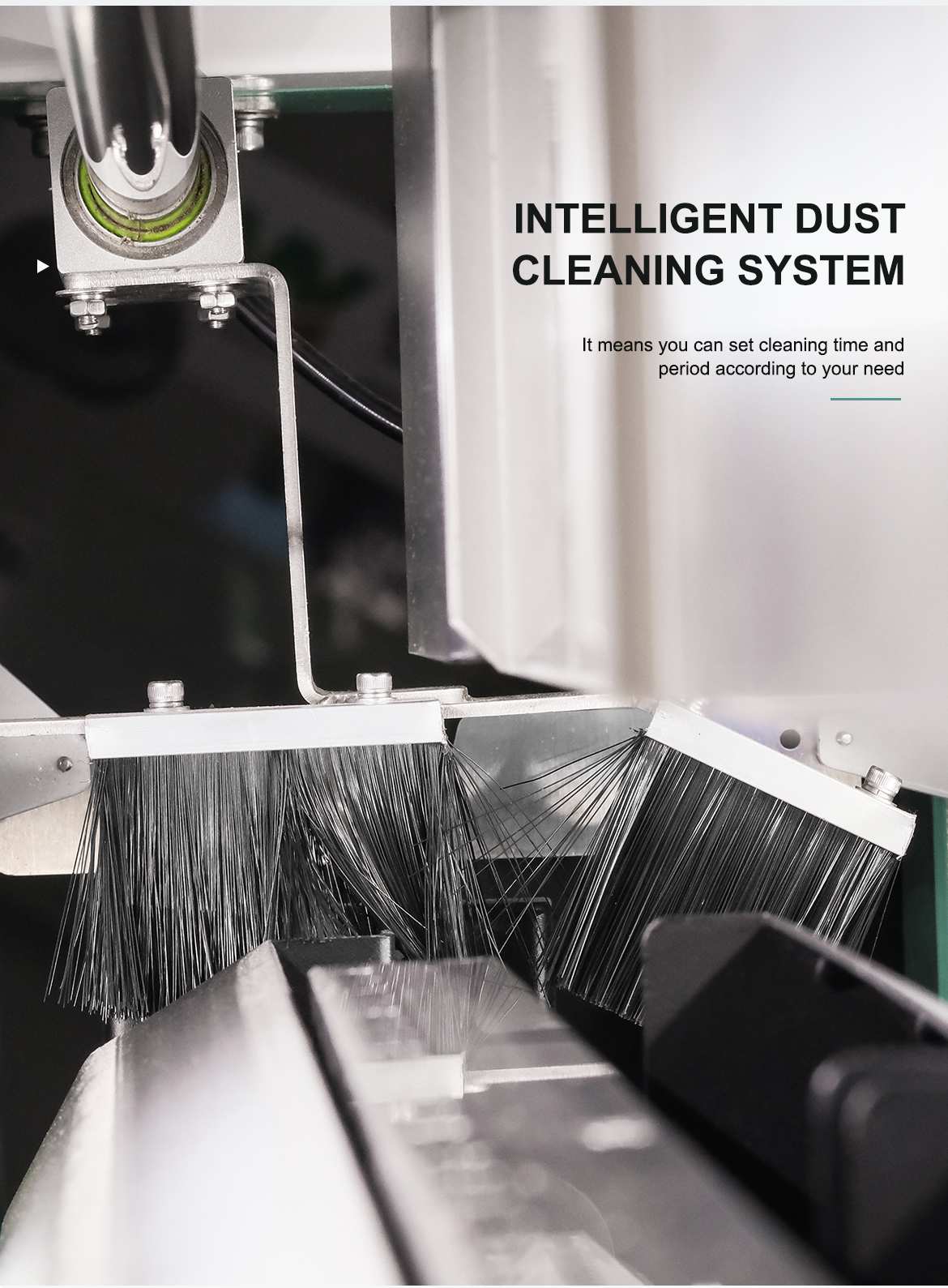

Intelligent dust cleaning system
This means you can set the cleaning time and period according to your needs.

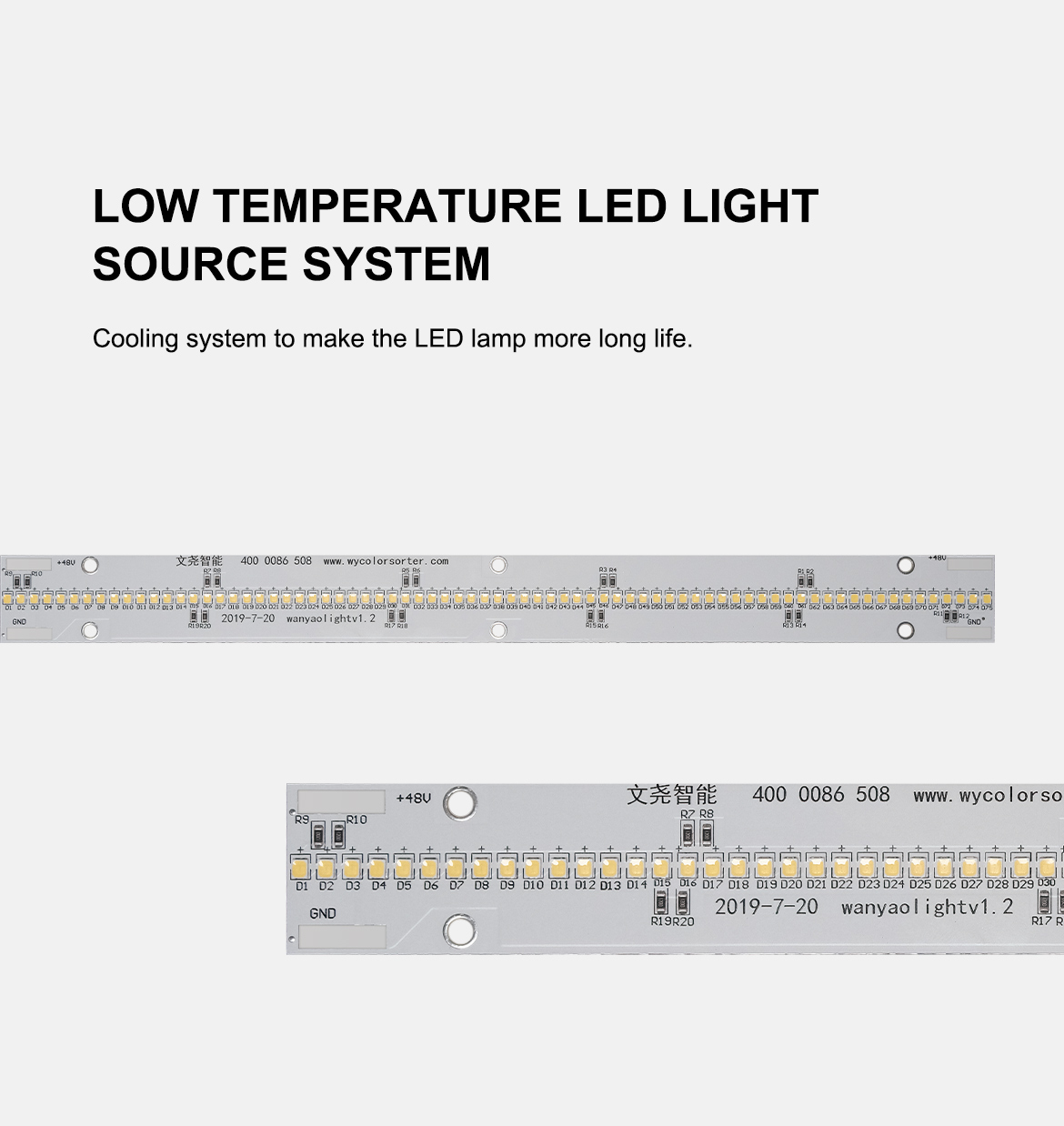

Low temperature led light source system
Cooling system to make the led lamp more long life.
Wifi remote control system
It means color sorter connecting to the internet,you can use mobile phone or computer to operate color sorter.
One device can be used in various scenarios. Set the device according to different materials.
